Descripción

Hardware
Network standards
IEEE802.3
IEEE802.3u
IEEE802.3x
IEEE802.3ab
LED Indicator
One Link/Act LED indicator for each Gigabit port
One Power LED indicator for each device
Interfaces

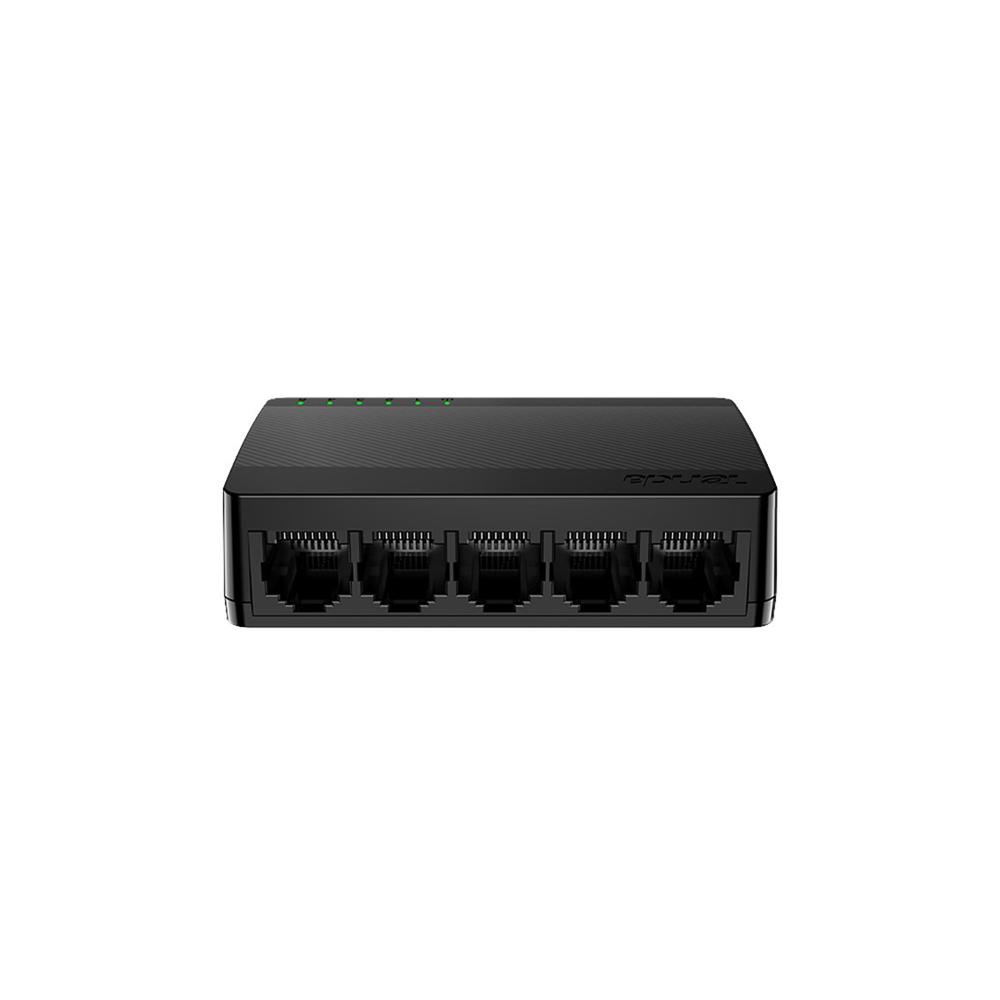

5*10/100/1000Base-T Ethernet ports
Transmission media
Ethernet: CAT3 UTP or better
Fast Ethernet: CAT5 UTP or better
Gigabit Ethernet: CAT5e UTP or better
Fan quantity
N/A
Dimension
82mm*52mm*22mm(L*W*H)
Material
Plastic
Level of protection
–
Forwarding mode
Store-and-forward
Switch capacity
10Gbps
Packet forwarding rate
7.44Mpps
Buffer
1Mb
MAC address table
2K
Jumbo frame
15K
Power
Input: 100-240V AC 50/60Hz
Output: 5.0V 0.6A ( External Power Adapter )
Power consumption
Max:&lt,1.7W
Mounting
” Desktop mounting: support
Wall mounting: support
Rack mounting:non-support”
Environment
Operating temperature: 0C – 45
Storage temperature: -40C – 70C
Operating humidity: (10% – 90%) RH, non-condensing
Storage humidity: (5% – 90%) RH, non-condensing
Certification
–
Software
Protocols
–
MAC address learning
Auto-learning and Auto-Updating
Funtions
plug-and-play
